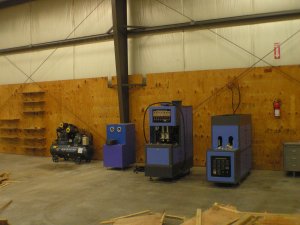

PET BOTTLE Blowing machine - Calitzdorp

You are purchasing a brand new, never used, and fully functional and tested equipment for blow molding of PET bottles, Very robust, and dependable unit.
We will service and install the equipment if needed..
You are only buying the mold unit and Preform heater. The Compressor is used for testing machine and validating, not included.

Specification:
AD-8800 semi automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10 to 2500ml.
It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle, cosmetics, and wide-mouth bottles, etc.
Adopting double crank to adjust mold , heavy locking mold, stable and fast , Adopt infrared oven to heat the perform. The perform rotated and heated equally.
The pneumatic system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .
It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step by step mode and the semi-auto mode.
The machine is small with low investment, easy and safe to operate.

? MS-880 semi automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from
10 to 2500ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics,
wide-mouth bottle etc.
? Adopting double crank to adjust mold , heavy locking mold, stable and fast , Adopt infrared oven to heat the perform , the
? perform rotated and heated equally.
? The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
? The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
? The machine can be operated in the step by step mode and the semi-auto mode.
? The machine is small with low investment, easy and safe to operate
? Max. volume of molded product 2500ml
? Max. product capacity 880BPH
? Max. Heating power 7kw
? Pressure of air supply 360 PSI
? Max. mold dimension 7.5*13.5*15in
? Max. shifting mold dimension 6.5in
? Center distance between two bottles Min. 3.5in, max. 7.875in
? Max. stretch length 13.75in
? Weight 1450 LBS
? Size: Main machine 63*23.5* 64in
? Oven 73*25* 57in
? 220V 3 PH.
